4  Measuring foliar severity

4.1 The actual severity measure

Among the various methods to express plant disease severity, the percent area affected (or symptomatic) by the disease is one of the most common, especially when dealing with diseases that affect leaves. In order to evaluate whether visual estimates of plant disease severity are sufficiently accurate (as discussed in the previous chapter), we require the actual severity values. These are also essential when creating Standard Area Diagrams (SADs), which are diagrammatic representations of severity values used as a reference either before or during visual assessment to standardize and produce more accurate results across different raters (Del Ponte et al. 2017).

The actual severity values are typically approximated using image analysis, wherein the image is segmented, and each pixel is categorized into one of three classes:

  1. Diseased (or symptomatic)
  2. Non-diseased (or healthy)
  3. Background (the non-plant portion of the image)

The ratio of the diseased area to the total area of the unit (e.g., the entire plant organ or section of the image) yields the proportion of the diseased area, or the percent area affected (when multiplied by 100). Researchers have employed various proprietary or open-source software to determine the actual severity, as documented in a review on Standard Area Diagrams (Del Ponte et al. 2017).

In this section, we will utilize the measure_disease() function from the {pliman} (Plant IMage ANalysis) R package (Olivoto 2022), and its variations, to measure the percent area affected. The package was compared with other software for determining plant disease severity across five different plant diseases and was shown to produce accurate results in most cases (Olivoto et al. 2022).

There are essentially two methods to measure severity. The first is predicated on image palettes that define each class of the image. The second relies on RGB-based indices (Alves et al. 2021). Let’s explore the first method, as well as an interactive approach to setting color palettes.

4.2 Image palettes

The most crucial step is the initial one, where the user needs to correctly define the color palettes for each class. In pliman, the palettes can be separate images representing each of the three classes: background (b), symptomatic (s), and healthy (h).

The reference image palettes can be constructed by manually sampling small areas of the image and creating a composite image. As expected, the results may vary depending on how these areas are selected. A study that validated pliman for determining disease severity demonstrated the effect of different palettes prepared independently by three researchers, in which the composite palette (combining the three users) was superior (Olivoto et al. 2022). During the calibration of the palettes, examining the processed masks is crucial to create reference palettes that are the most representative of the respective class.

In this example, I manually selected and pasted several sections of images representing each class from a few leaves into a Google slide. Once the image palette was ready, I exported each one as a separate PNG image file (JPG also works). These files were named: sbr_b.png, sbr_h.png, and sbr_s.png. They can be found here in this folder for downloading.

Figure 4.1: Preparation of image palettes by manually sampling fraction of the images that represent background, heatlhy leaf and lesions

Now that we have the image palettes, we need to import them into the environment, using image_import() function for further analysis. Let’s create an image object for each palette named h (healthy), s (symptoms) and b (background).

library(pliman)
h <- image_import("imgs/sbr_h.png")
s <- image_import("imgs/sbr_s.png")
b <- image_import("imgs/sbr_b.png")

We can visualize the imported image palettes using the image_combine() function.

image_combine(h, s, b, ncol =3)
Figure 4.2: Image palettes created to segment images into background, sypomtoms and healthy area of the image

An alternative way to set the palettes is to use the pick_palette() function. It allows to manually pick the colors for each class by clicking on top of the imported image. We can use one of the original images or a composite images with portions of several leaves. Let’s use here one of the original images and pick the background colors and assigned to b vector.

img <- image_import("imgs/originals/img46.png")

b <- pick_palette(img, viewer = "mapview")

The original image is displayed and the user needs to select the place marker. It is possible to zoom in the image. After placing the markers via clicking on the background colors multiple times, the user should click on “Done”.

Soybean leaf displaying symptoms of soybean rust
image_combine(b)

Image generating after picking the palette colors for the background of the leaf

Now, we can proceed and pick the colors for the other categories following the same logic.

# Symptoms
s <- pick_palette(img, viewer = "mapview")

# healthy
h <- pick_palette(img, viewer = "mapview")

4.3 Measuring severity

4.3.1 Single image

4.3.1.1 Using color palettes

To determine severity in a single image (e.g. img46.png), the image file needs to be loaded and assigned to an object using the same image_import() function used to load the palettes. We can then visualize the image, again using image_combine().

Tip

The collection of images used in this chapter can be found here.

img <- image_import("imgs/originals/img46.png")
image_combine(img)
Figure 4.3: Imported image for further analysis

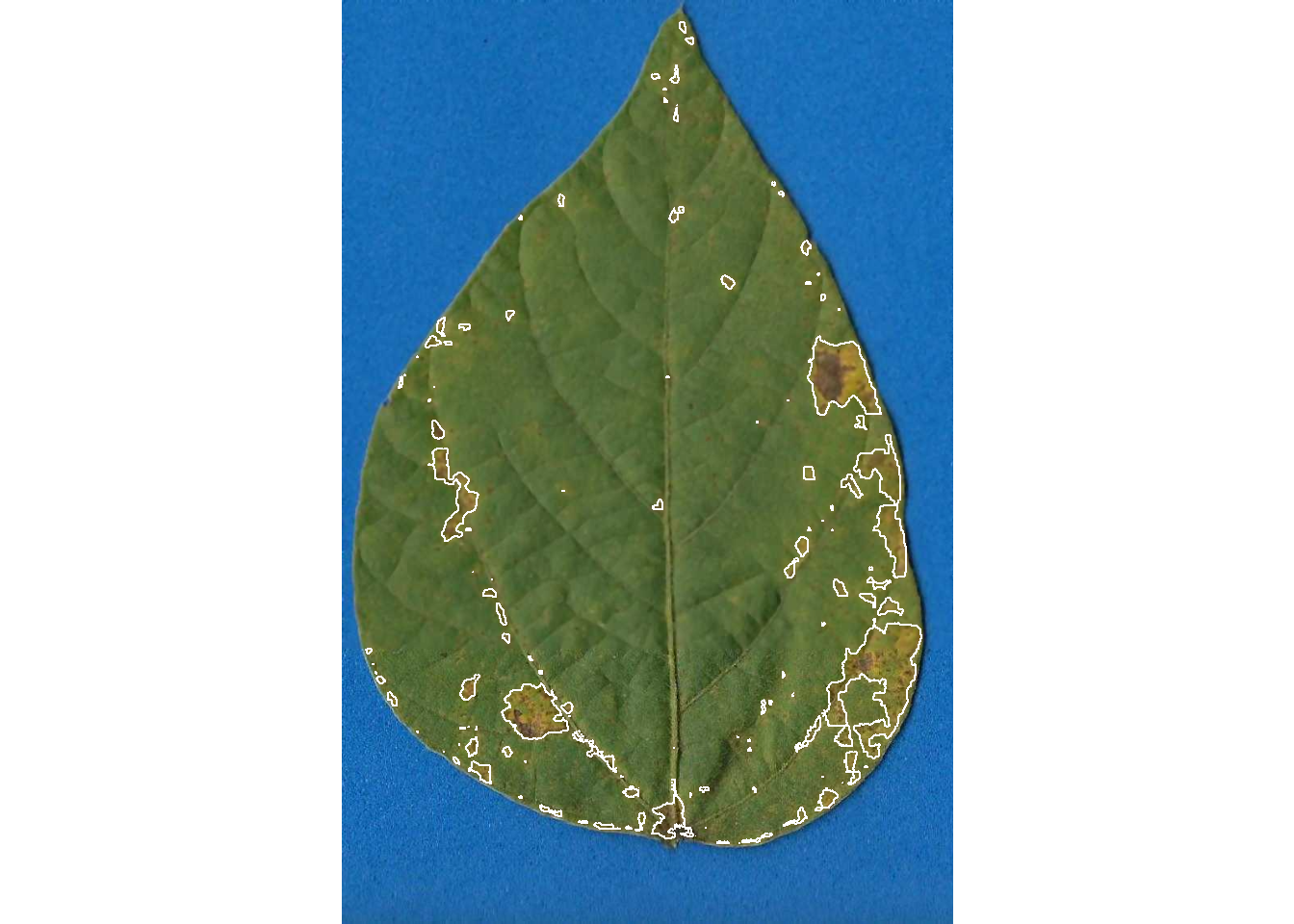

Now the engaging part starts with the measure_disease() function. Four arguments are required when using the reference image palettes: the image representing the target image and the three images of the color palettes. As the author of the package states, “pliman will take care of all the details!” The severity is the value displayed under ‘symptomatic’ in the output.

set.seed(123)
measure_disease(
  img = img,
  img_healthy = h,
  img_symptoms = s,
  img_background = b
)

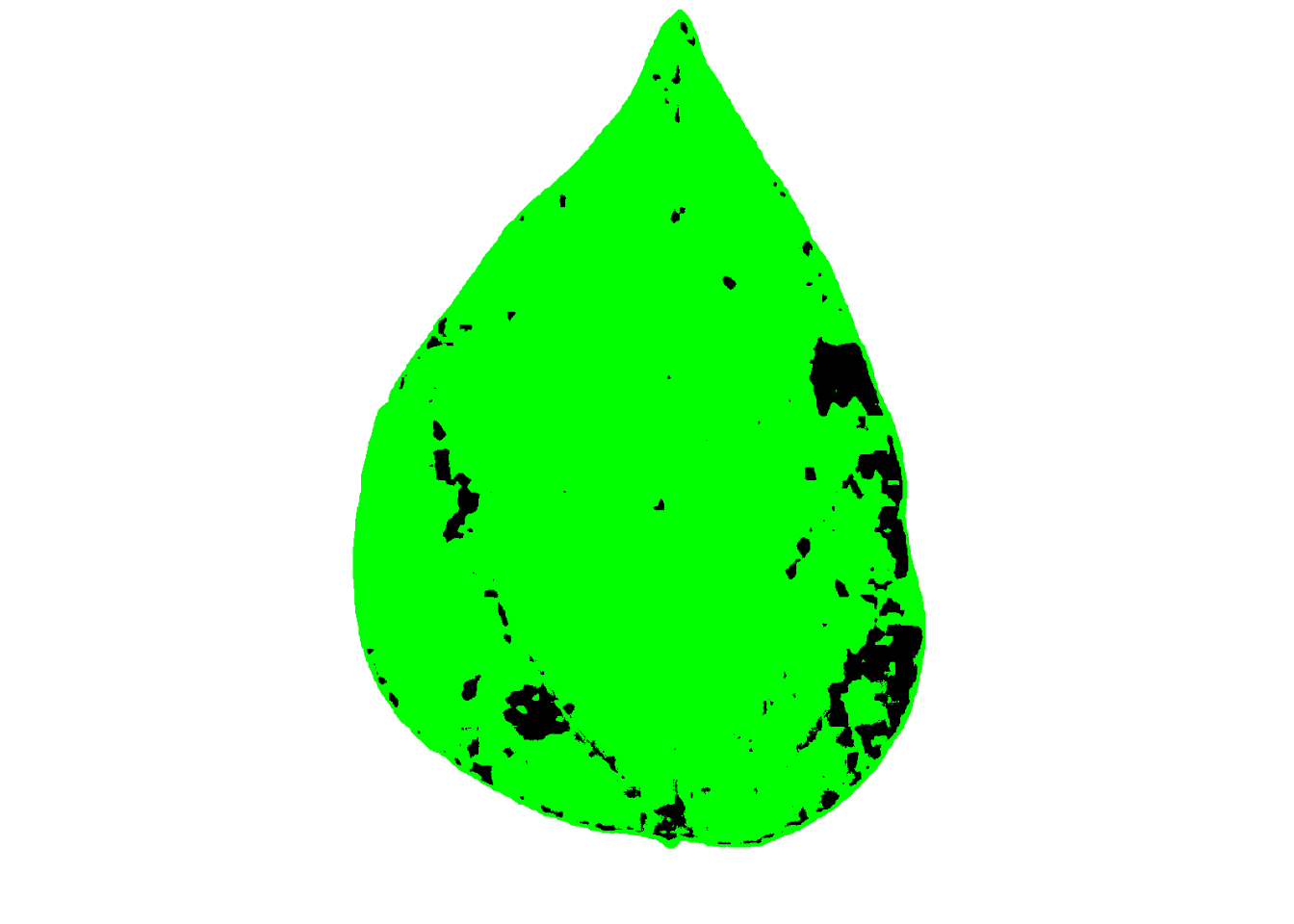

If we want to show the mask with two colors instead of the original, we can set to FALSE two “show_” arguments:

set.seed(123)
measure_disease(
  img = img,
  img_healthy = h,
  img_symptoms = s,
  img_background = b,
  show_contour = FALSE,
  show_original = FALSE
)

4.3.2 Multiple images

Measuring severity in single images is indeed engaging, but we often deal with multiple images, not just one. Using the above procedure to process each image individually would be time-consuming and potentially tedious.

To automate the process, {pliman} offers a batch processing approach. Instead of using the img argument, one can use the pattern argument and define the prefix of the image names. Moreover, we also need to specify the directory where the original files are located.

If the user wants to save the processed masks, they should set the save_image argument to TRUE and also specify the directory where the images will be saved. Here’s an example of how to process 10 images of soybean rust symptoms. The output is a list object with the measures of the percent healthy and percent symptomatic area for each leaf in the severity object.

pliman <- measure_disease(
  pattern = "img",
  dir_original = "imgs/originals" ,
  dir_processed = "imgs/processed",
  save_image = TRUE,
  img_healthy = h,
  img_symptoms = s,
  img_background = b,
  verbose = FALSE,
  plot = FALSE
)
Done!
Elapsed time: 00:00:06
severity <- pliman$severity
severity
     img  healthy symptomatic
1  img11 70.79655  29.2034481
2  img35 46.94177  53.0582346
3  img37 60.47440  39.5256013
4  img38 79.14060  20.8594011
5  img46 93.14958   6.8504220
6   img5 20.53175  79.4682534
7  img63 97.15669   2.8433141
8  img67 99.83720   0.1627959
9  img70 35.56684  64.4331583
10 img75 93.04453   6.9554686

When the argument save_image is set to TRUE, the images are all saved in the folder with the standard prefix “proc.”

Figure 4.4: Images created by pliman and exported to a specific folder

Let’s have a look at one of the processed images.

Figure 4.5: Figure created by pliman after batch processing to segment the images and calculate percent area covered by symptoms. The symptomatic area is delinated in the image.

4.3.2.1 More than a target per image

{pliman} offers a custom function to estimate the severity in multiple targets (e.g. leaf) per image. This is convenient to decrease the time when scanning the specimens, for example. Let’s combine three soybean rust leaves into a single image and import it for processing. We will further set the index_lb (leaf background), save_image to TRUE and inform the directory for the processed images using dir_processed.

img2 <- image_import("imgs/soybean_three.png")
image_combine(img2)
Figure 4.6: Imported image with multiple targets in a single image for further analysis using measure_disease_byl() function of the {pliman} package
 pliman2 <- measure_disease_byl(img = img2,
                        index_lb = b,
                        img_healthy = h,
                        img_symptoms = s,
                        save_image = TRUE,
                        dir_processed = "imgs/proc")

 pliman2$severity
  img leaf  healthy symptomatic
1 img    1 59.11737   40.882632
2 img    2 61.36616   38.633841
3 img    3 93.21756    6.782436

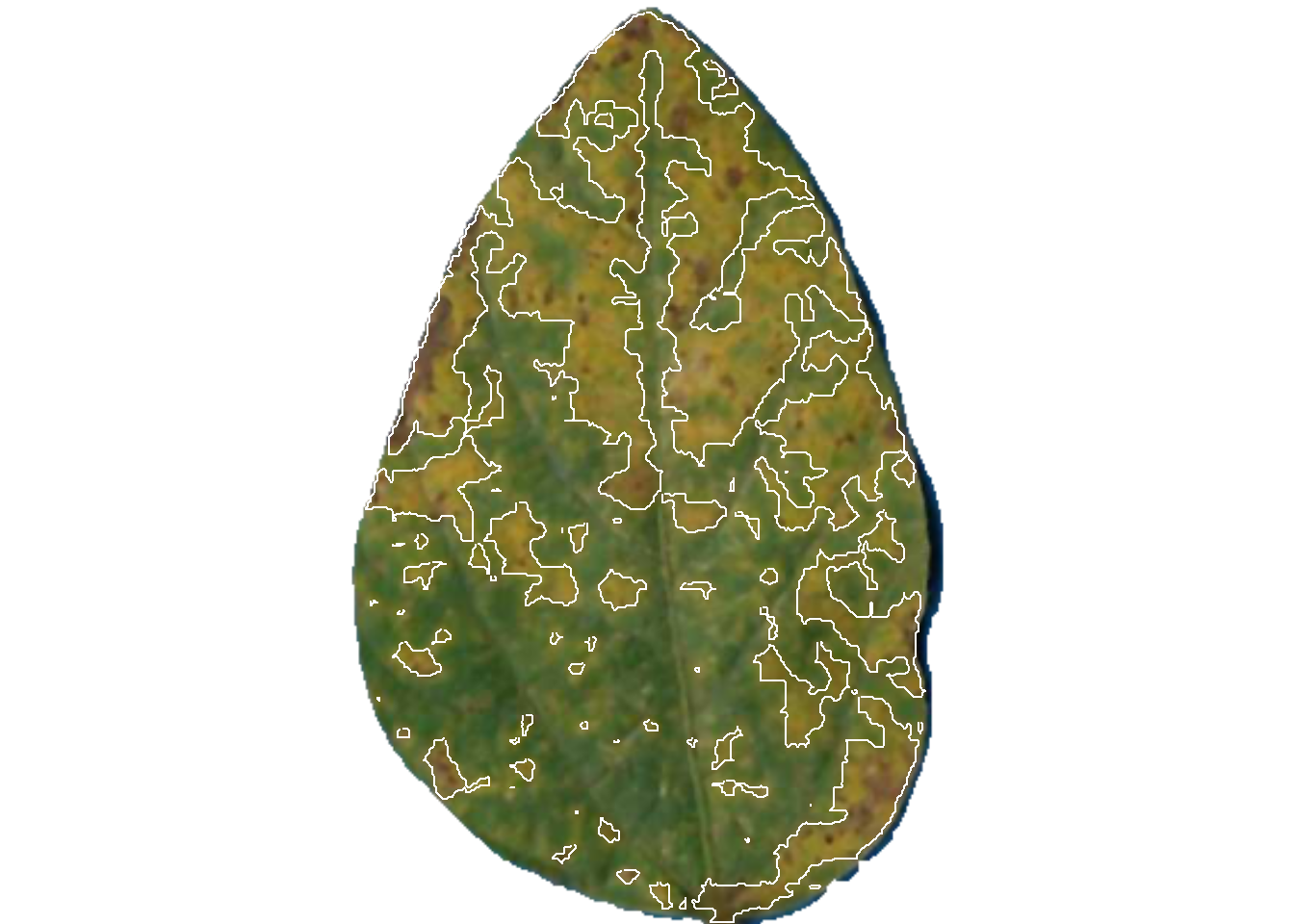

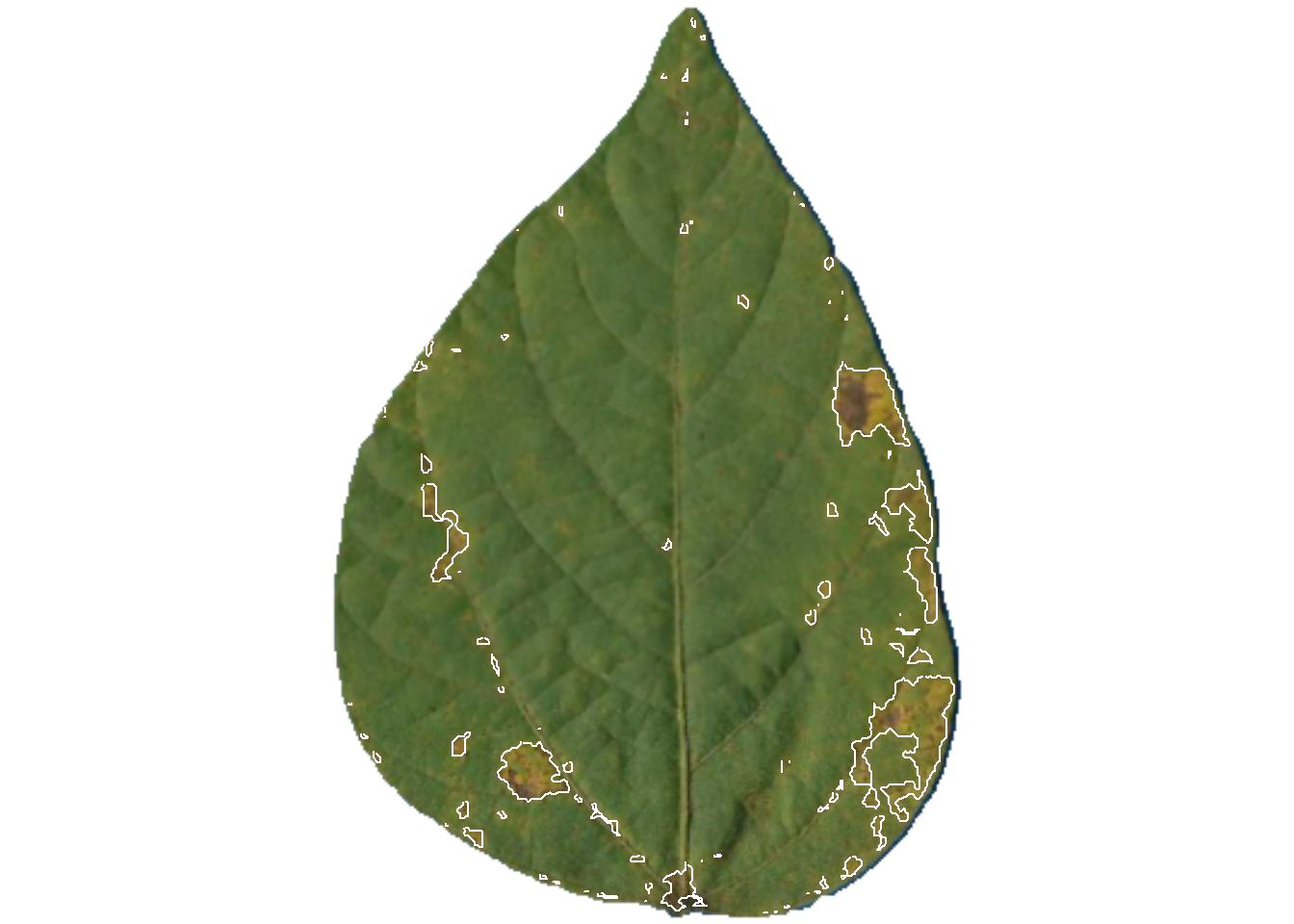

The original image is splited and the individual new images are saved in the proc folder.

Individual images of the soybean leaves after processed using the measure_disease_byl function of the {pliman} package.

4.4 How good are these measurements?

These 10 images were previously processed in QUANT software for measuring severity which is also based on image threshold. Let’s create a tibble for the image code and respective “actual” severity - assuming QUANT measures as reference.

library(tidyverse)
library(r4pde)
quant <- tribble(
  ~img, ~actual,
   "img5",     75,
  "img11",     24,
  "img35",     52,
  "img37",     38,
  "img38",     17,
  "img46",      7,
  "img63",    2.5,
  "img67",   0.25,
  "img70",     67,
  "img75",     10
  )

We can now combine the two dataframes and produce a scatter plot relating the two measures.

dat <- left_join(severity, quant)
Joining with `by = join_by(img)`
dat %>%
  ggplot(aes(actual, symptomatic)) +
  geom_point(size = 3, shape = 16) +
  ylim(0, 100) +
  xlim(0, 100) +
  geom_abline(slope = 1, intercept = 0) +
  labs(x = "Quant",
       y = "pliman")+
  theme_r4pde()
Figure 4.7: Scatter plot for the relationship between severity values measured by pliman and Quant software

The concordance correlation coefficient is a test for agreement between two observers or two methods (see previous chapter). It is an indication of how accurate the pliman measures are compared with a standard. The coefficient is greater than 0.99 (1.0 is perfect concordance), suggesting an excellent agreement!

library(epiR)
ccc <- epi.ccc(dat$actual, dat$symptomatic)
ccc$rho.c
        est     lower     upper
1 0.9940835 0.9774587 0.9984566

In conclusion, as mentioned earlier, the most critical step is defining the reference image palettes. A few preliminary runs may be necessary for some images to ensure that the segmentation is being carried out correctly, based on visual judgment. This is not different from any other color-threshold based methods, where the choices made by the user impact the final result and contribute to variation among assessors. The drawbacks are the same as those encountered with direct competitors, namely, the need for images to be taken under uniform and controlled conditions, especially with a contrasting background.
